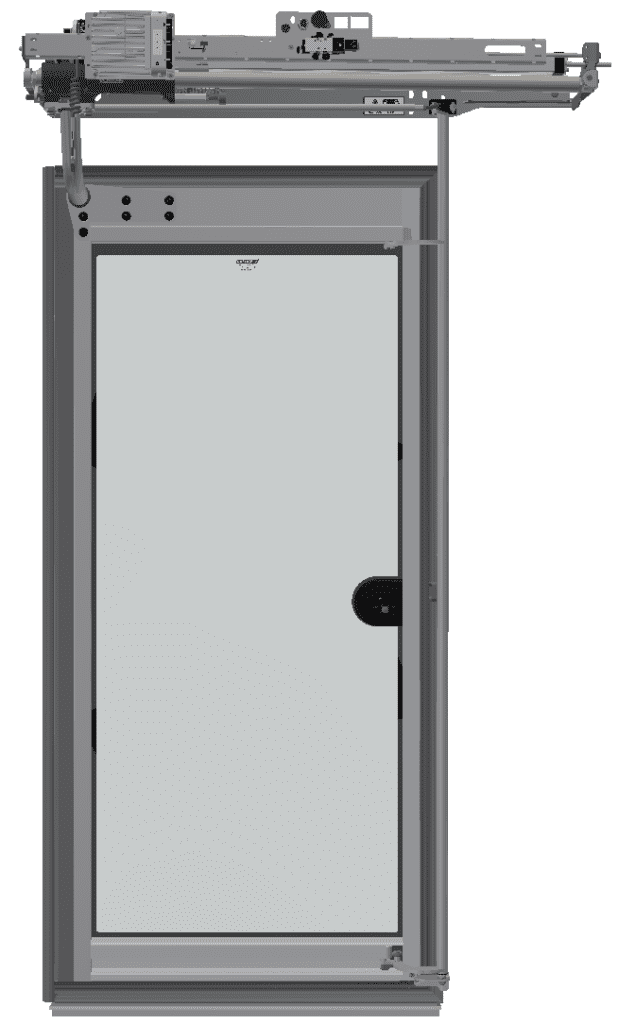

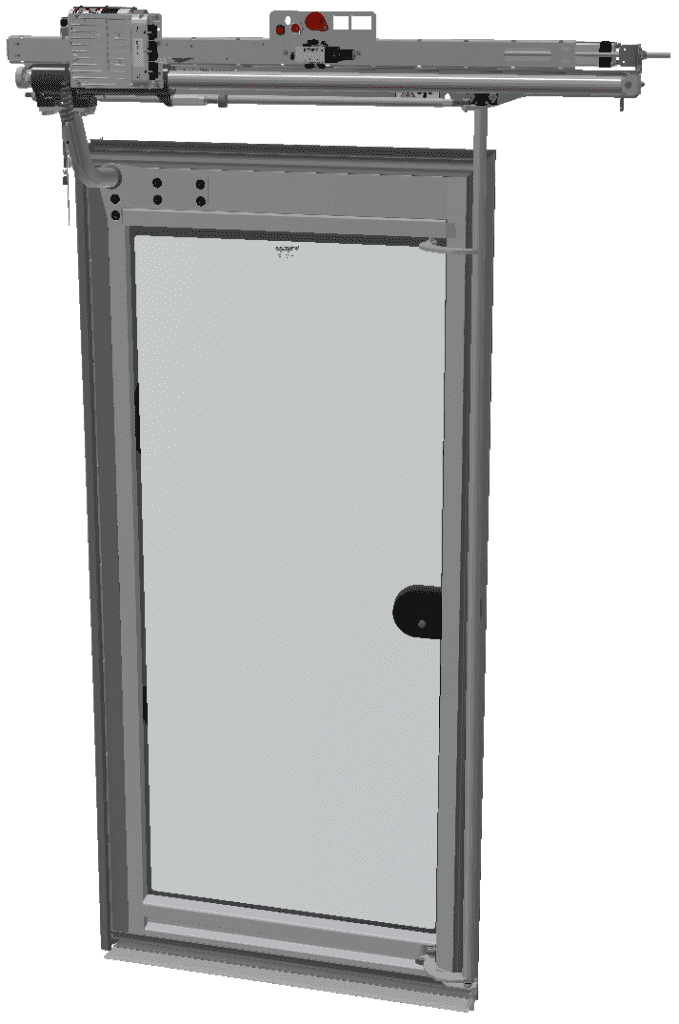

Rapid sliding door system
developed by ventura
Unique door system developed by Ventura Systems, the Rapid Sliding door system is suitable for high speeds.
The Rapid Sliding door is a one of a kind door system, exclusively manufactured by Ventura Systems. Using innovative technologies, we have developed a door that fits your needs perfectly.
The closing and opening time of this door system is reduced considerably, which enables the vehicle to continue its journey quickly and smoothly.
The system is available in both the electrical and pneumatic version with a single door leaf. Height, width and other features can be customized according to your wishes.
Available for:
- Unique patented design
- Fast opening and closing
- Suitable for high speeds
- Exceptional good sealing
| Feature | Specification |
|---|---|
| Door leaves | 1 |
| Drive / actuator | pneumatic / electric (24V/12V) |
| Portal width | 860 - 1100 mm |
| Glazing | single/double/heated/tinted |
| Safety | obstruction detection/drag detection/passenger sensors |
| Recommended max. vehicle speed | 100 km/h - 62 m/ph |
| Compliance | ECE R 107 / ECE R 118-3 / ECE R 10 / TS 160 / ISO 26262-QM (Ventura DCU) |
Specifications
| Option 1 | Option 2 | Option 3 | |
|---|---|---|---|
| Actuator | Electric | Pneumatic | |
| Profile Color | Any color | ||
| Glass | Single | Double | Heated |
| Glass Color | Any | ||
| Locks | Square Key 7 or 8 mm | Emka | Ymos |
| Lock Switch | Optional | ||
| Voltage | 12 V | 24 V | |
| Door Leaves | Single Leaf | ||
| Width | 860 - 900 | 1000 - 1100 | |
| Controls | DCU | Wabco | Bus Multiplex |
| Door Buttons | Captron | EAO | Escha |
